下载 nginx 1.7.11.3 Gryphon
下载链接: http://nginx-win.ecsds.eu/download/nginx 1.7.11.3 Gryphon.zip，下载完成后解压，将解压后的目录命名为

nginx-1.7.11.3-Gryphon

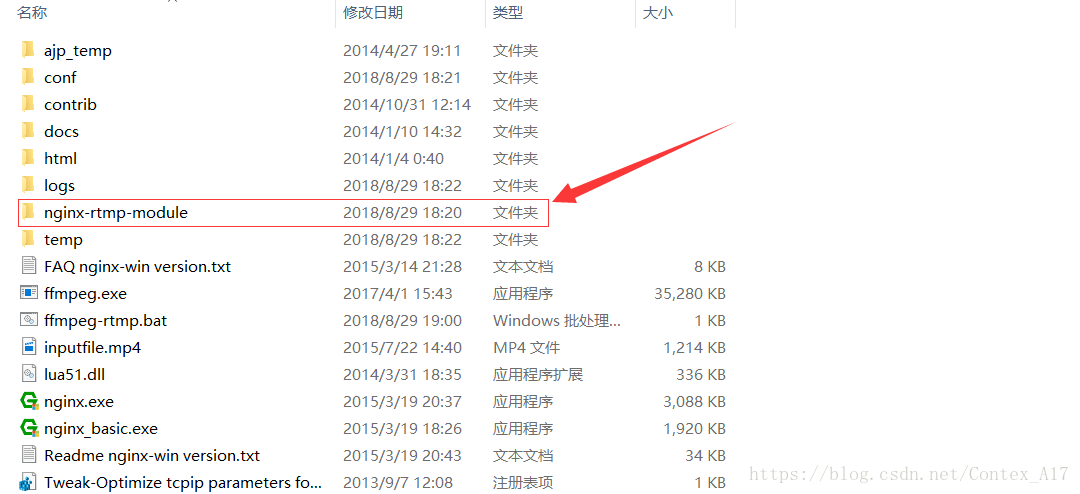

2. 下载服务器状态检查程序 stat.xsl（注：直接clone到nginx-1.7.11.3-Gryphon目录下）

下载地址https://github.com/arut/nginx-rtmp-module/

配置文件 conf\nginx-win-rtmp.conf 内容如下:（注：用记事本打开直接复制粘贴，避免编码格式引起错误）

#user nobody;

multiple workers works !

worker_processes 2;

#error_log logs/error.log;
#error_log logs/error.log notice;
#error_log logs/error.log info;

#pid logs/nginx.pid;

events {
worker_connections 8192;
# max value 32768, nginx recycling connections+registry optimization =
# this.value * 20 = max concurrent connections currently tested with one worker
# C1000K should be possible depending there is enough ram/cpu power
# multi_accept on;
}

rtmp {
server {
listen 1935;
chunk_size 4000;
application live {
live on;

         # record first 1K of stream
         record all;
         record_path /tmp/av;
         record_max_size 1K;

         # append current timestamp to each flv
         record_unique on;

         # publish only from localhost
         allow publish 127.0.0.1;
         deny publish all;

         #allow play all;
    }
}

}

http {
#include /nginx/conf/naxsi_core.rules;
include mime.types;
default_type application/octet-stream;

#log_format  main  '$remote_addr:$remote_port - $remote_user [$time_local] "$request" '
#                  '$status $body_bytes_sent "$http_referer" '
#                  '"$http_user_agent" "$http_x_forwarded_for"';

#access_log  logs/access.log  main;

# loadbalancing PHP

upstream myLoadBalancer {

server 127.0.0.1:9001 weight=1 fail_timeout=5;

server 127.0.0.1:9002 weight=1 fail_timeout=5;

server 127.0.0.1:9003 weight=1 fail_timeout=5;

server 127.0.0.1:9004 weight=1 fail_timeout=5;

server 127.0.0.1:9005 weight=1 fail_timeout=5;

server 127.0.0.1:9006 weight=1 fail_timeout=5;

server 127.0.0.1:9007 weight=1 fail_timeout=5;

server 127.0.0.1:9008 weight=1 fail_timeout=5;

server 127.0.0.1:9009 weight=1 fail_timeout=5;

server 127.0.0.1:9010 weight=1 fail_timeout=5;

least_conn;

}

sendfile        off;
#tcp_nopush     on;

server_names_hash_bucket_size 128;

Start: Timeouts

client_body_timeout   10;
client_header_timeout 10;
keepalive_timeout     30;
send_timeout          10;
keepalive_requests    10;

End: Timeouts

#gzip  on;

server {
    listen       80;
    server_name  localhost;


    location /stat {
        rtmp_stat all;
        rtmp_stat_stylesheet stat.xsl;
    }
    location /stat.xsl {
        root nginx-rtmp-module/;
    }
    location /control {
        rtmp_control all;
    }

    #charset koi8-r;
    #access_log  logs/host.access.log  main;

    ## Caching Static Files, put before first location
    #location ~* \.(jpg|jpeg|png|gif|ico|css|js)$ {
    #    expires 14d;
    #    add_header Vary Accept-Encoding;
    #}

For Naxsi remove the single # line for learn mode, or the ## lines for full WAF mode

    location / {
        #include    /nginx/conf/mysite.rules; # see also http block naxsi include line
        ##SecRulesEnabled;
     ##DeniedUrl "/RequestDenied";
     ##CheckRule "$SQL >= 8" BLOCK;
     ##CheckRule "$RFI >= 8" BLOCK;
     ##CheckRule "$TRAVERSAL >= 4" BLOCK;
     ##CheckRule "$XSS >= 8" BLOCK;
        root   html;
        index  index.html index.htm;
    }

For Naxsi remove the ## lines for full WAF mode, redirect location block used by naxsi

    ##location /RequestDenied {
    ##    return 412;
    ##}

Lua examples !

location /robots.txt {

rewrite_by_lua '

if ngx.var.http_host ~= "localhost" then

return ngx.exec("/robots_disallow.txt");

end

';

}

    #error_page  404              /404.html;
    # redirect server error pages to the static page /50x.html
    #
    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   html;
    }
    # proxy the PHP scripts to Apache listening on 127.0.0.1:80
    #
    #location ~ \.php$ {
    #    proxy_pass   http://127.0.0.1;
    #}
    # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
    #
    #location ~ \.php$ {
    #    root           html;
    #    fastcgi_pass   127.0.0.1:9000; # single backend process
    #    fastcgi_pass   myLoadBalancer; # or multiple, see example above
    #    fastcgi_index  index.php;
    #    fastcgi_param  SCRIPT_FILENAME  $document_root$fastcgi_script_name;
    #    include        fastcgi_params;
    #}
    # deny access to .htaccess files, if Apache's document root
    # concurs with nginx's one
    #
    #location ~ /\.ht {
    #    deny  all;
    #}
}
# another virtual host using mix of IP-, name-, and port-based configuration
#
#server {
#    listen       8000;
#    listen       somename:8080;
#    server_name  somename  alias  another.alias;
#    location / {
#        root   html;
#        index  index.html index.htm;
#    }
#}
# HTTPS server
#
#server {
#    listen       443 ssl spdy;
#    server_name  localhost;
#    ssl                  on;
#    ssl_certificate      cert.pem;
#    ssl_certificate_key  cert.key;
#    ssl_session_timeout  5m;
#    ssl_prefer_server_ciphers On;
#    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
#    ssl_ciphers ECDH+AESGCM:ECDH+AES256:ECDH+AES128:ECDH+3DES:RSA+AESGCM:RSA+AES:RSA+3DES:!aNULL:!eNULL:!MD5:!DSS:!EXP:!ADH:!LOW:!MEDIUM;
#    location / {
#        root   html;
#        index  index.html index.htm;
#    }
#}

}

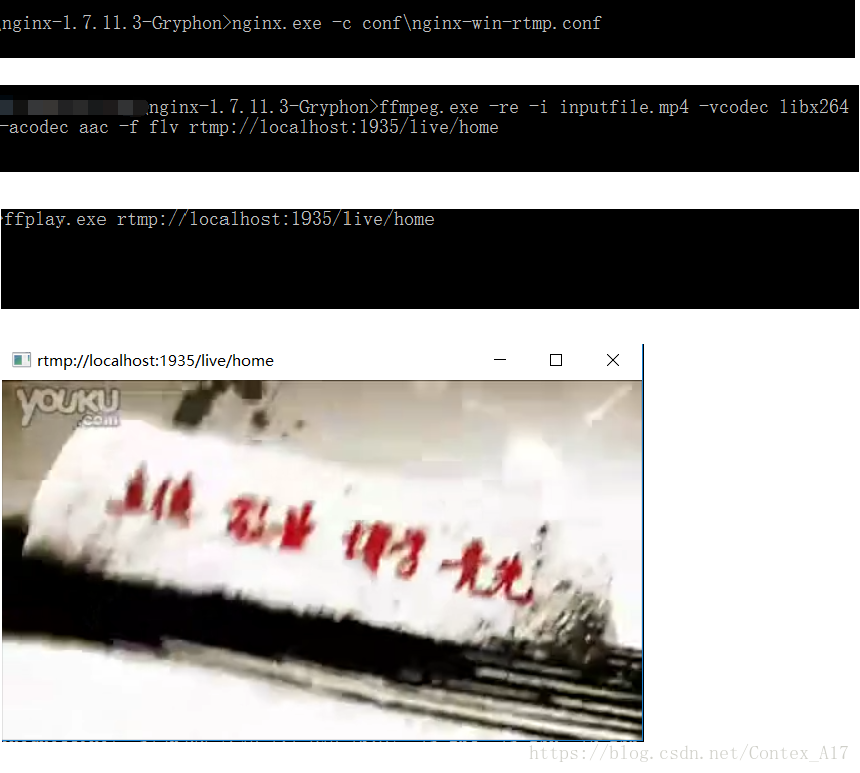

4. 启动服务器

nginx.exe -c conf\nginx-win-rtmp.conf
5.使用ffmpeg、ffplay进行推流拉流验证（直接ffmpeg官方下载windows下的可执行文件）

5.1推流测试，使用ffmpeg命令完成即可

ffmpeg.exe -re -i inputfile.mp4 -vcodec libx264 -acodec aac -f flv rtmp://localhost:1935/live/home
5.2拉流测试，使用ffplay命令完成即可
—————————————
ffplay.exe rtmp://localhost:1935/live/home
